WELLTEC TTI-260SE (YR 2013) SERVO-DRIVEN Brand New Plastic Injection Moulding Machine

WELLTEC TTI-260SE (YR 2013) SERVO-DRIVEN Brand New Plastic Injection Moulding Machine for sale

Brand New Condition

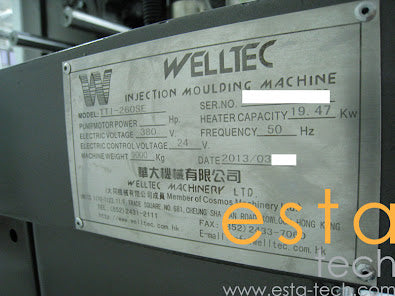

Model: TTI-260SE

Year: 2013

Screw diameter: 50mm

Theoretical shot volume: 497cm3

Theoretical shot weight (PP): 358g

Clamping force: 260-Ton

Max. Daylight: 1105mm

Distance between tie bars: 580x580mm

Min. Mould Dimension: 400x400mm

Max. Mould Thickness range: 200~580mm

The machine comes with number of preinstalled options:

1. Plasticising with Servo-motor pump for parallel motion (including upgrade servo-motor)
2. Herzog pneumatic shut-off nozzle for plasticising when parallel motion.
3. TAI-Star 50mm(447 gram) nitrided Screw, Screw-tip, End Cap and Barrel for moulding Homo-PP 12-24 MFI.
4. Semi-Closed Loop Clamp open/close. (by Rexroth proportional valve)
5. Proportional backpressure.
6. Hydraulic Oil temperature controlled by temperature control valves.
7. Three air blasts. (Two for air ejection, one for valve gate control.)
8. High pressure grease lubrication pump
9. Euromap 67 Robot interface.
10. B&R S09 Controller with additional I/O port for parallel motion and additional option control.

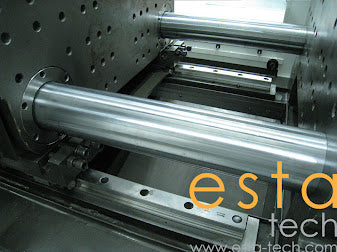

11. Moving platens mounted on linear rails (Rails from Rexroth)
12. Enhanced Machine's Chassis and structure for guarantee platen parallelism???? 0.3mm. (when toggle at release condition, mould opened).
13. Barrel ceramic heater full set (long life operation at 250C)
14. Redesign and build the power cabinet for optional items.
15. Custom colour (white panels).
16. Spare parts. (Barrel ceramic heaters full set, Cylinder seals full set, Hydraulic oil filter one piece, Thermocouples full set, Levelling pads one set, Nozzle & Screw tip)

The machine is in EXCELLENT condition. Please contact us for more details and price.
